Integrated High‑Pressure Hydraulic Power Unit

This custom integrated high‑pressure hydraulic power unit serves heavy‑duty machines, test benches, log splitters, tooling presses and hydraulic testers.

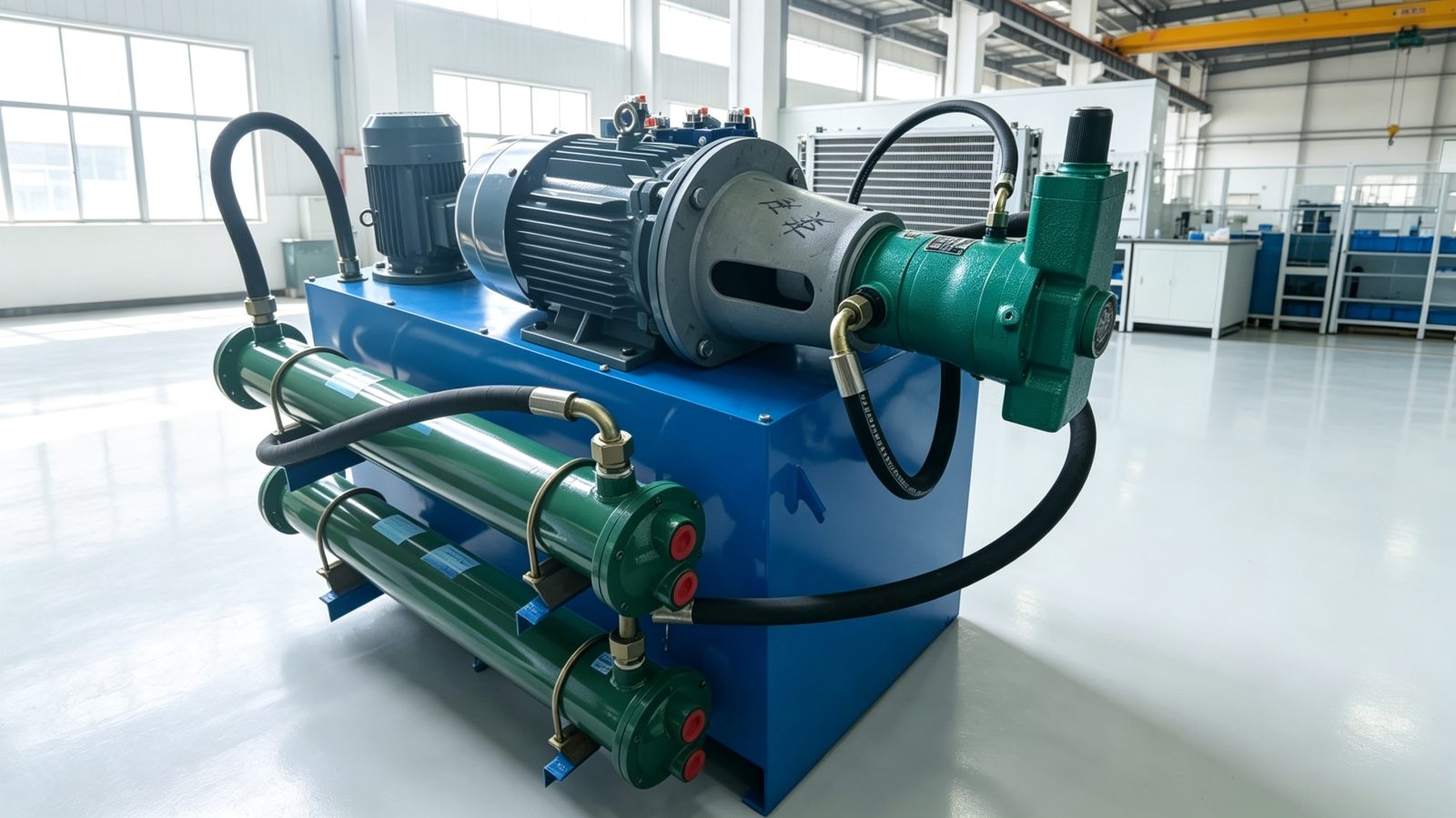

Main Components

Power System

• Vertical three‑phase asynchronous motor for power input
• Axial piston high‑pressure pump (green with adjusting knob). Direct flange‑mounted to motor for high transmission efficiency, adjustable output pressure for large‑tonnage equipment.

Oil Tank Carbon‑steel welded tank with internal baffles for oil storage, impurity settling and heat stabilization.

Cooling System Two shell‑and‑tube water‑cooled heat exchangers. External circulating water dissipates heat for long‑time continuous operation, preventing overheating and seal failure.

Piping & Valves High‑pressure steel‑wire hoses and brass ferrule fittings. Integrated valve manifold on tank top connects external cylinders for extend‑retract actions.

Key Features

• Max pressure up to 31.5 MPa, fits 100‑300‑ton hydraulic cylinders
• Water‑cooled design supports non‑stop heavy‑duty work
• Compact motor‑pump assembly, easy to install and move
• Manual on‑board pressure adjustment

Applications

Hydraulic test benches, straightening machines, log splitters, bearing presses, mold clamping tooling, construction machinery test platforms.

Operating Notes

• Use 46# anti‑wear hydraulic oil only
• Connect cooling circulating water before full‑load running
• Clockwise for higher pressure, counter‑clockwise for lower; avoid immediate maximum pressure
• Bleed pipeline air before initial pressure‑up
